From Figma concept to a production-ready chatbot specification

I designed and specified the website chatbot end to end – merchant setup, conversation UX, suggested questions, message-level and session-level feedback, admin conversation history, and handoff requirements for AI/API integration and production delivery.

Role: Lead UX / UI & Product Design
Platform: Web · desktop & mobile
Scope: Setup, widget, admin, feedback
Outcome: Designed for production

The chatbot had a face. It didn’t have a product.

Merchants needed a support chatbot on their website that could answer order, shipping, and policy questions without waiting for an agent. The Figma concept showed the widget. Production needed everything around it: a setup path merchants can finish without a developer, conversation logic, empty and error states, a way to collect feedback, and a place in Service Cloud to read what actually happened.

The goal was not a prettier chat bubble. It was a reliable channel – one that matches the design, works on desktop and mobile, connects to backend and AI services, and gives the team a closed loop to improve answers over time.

Product outcome

A storefront chatbot merchants can configure, shoppers can use, and operators can measure

Merchants brand it, set hours, and publish. Customers get answers, suggested questions, and a clear path to an agent. Operators see conversation history, star ratings, thumbs, and “what went wrong” reasons – so the next release is informed by real use, not guesswork.

Merchants set it up themselves

The updated design file expands the merchant journey beyond branding. They create a chatbot from an empty list, name it, theme it, set hours, write quick prompts, attach a knowledge base, choose what the form captures, then generate a preview and publish. Save Changes is a draft. Publish Chatbot is live.

01 · Chatbots

Create from empty

Empty state, then a list with a 20-bot cap. Create new chatbot is the only primary action.

02 · General

Name the bot

Chatbot name and description – not a street address. Preview on the right updates as they type.

03 · Appearance

Brand the widget

Logo (160×160 PNG/SVG), colour palette or custom hex, live widget preview, Save changes.

04 · Hours

When it is on

24/7 availability or custom hours for each day. If the store is closed, the widget should not pretend an agent is there.

05 · Quick prompts

Teach the bot

Paste a URL or upload a PDF, TXT, DOC, or DOCX file (up to 5 MB). This is how answers stay on-brand without a developer.

07 · Forms

What to capture

Email, name, phone – on or off. The bot only asks for what the merchant actually needs.

08 · Preview

Then publish

Generate Preview, Edit, or Publish Chatbot. They never commit to the storefront blind.

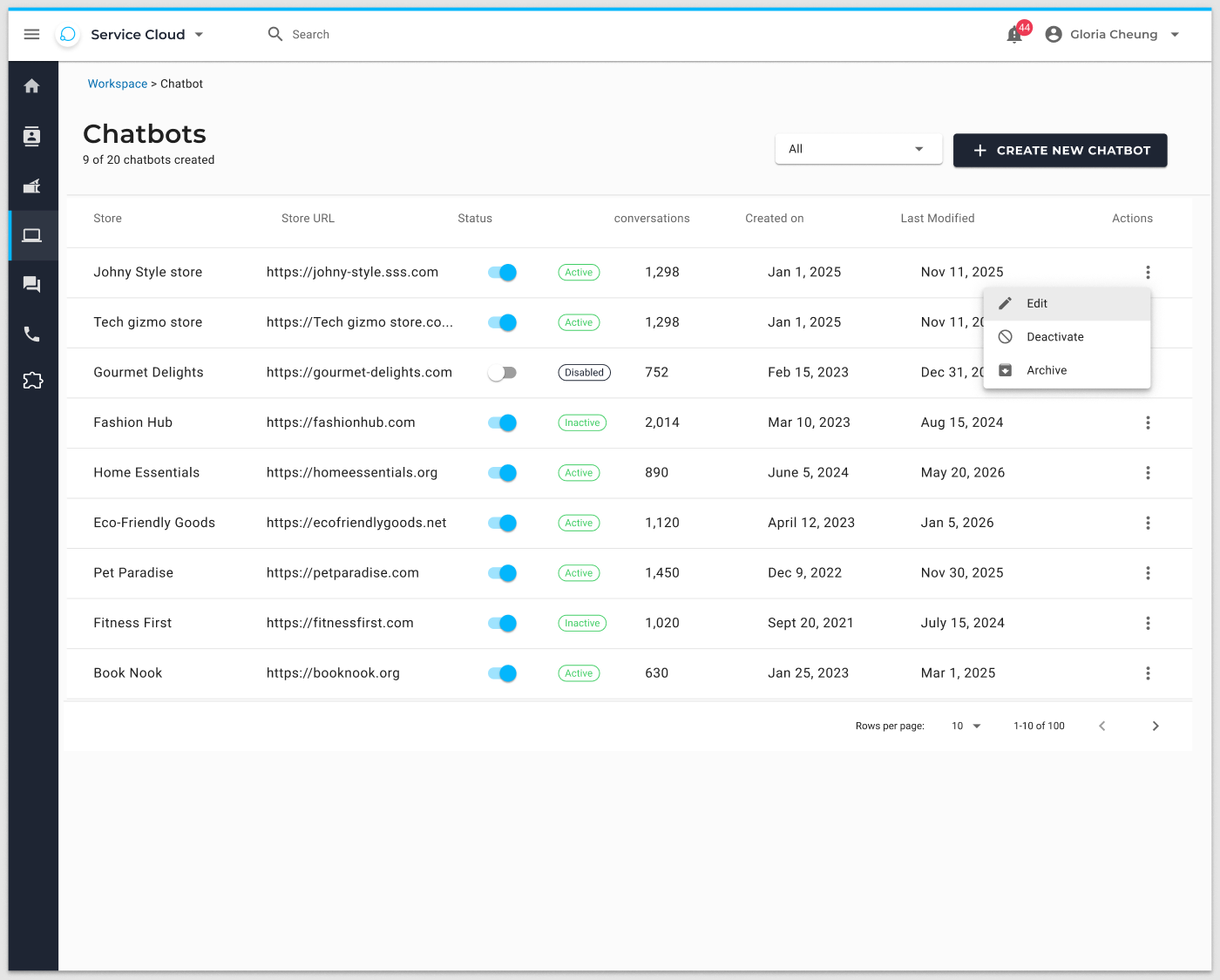

Chatbots list with Create new chatbot — **Chatbots** List, 9 of 20 cap, Create new chatbot.

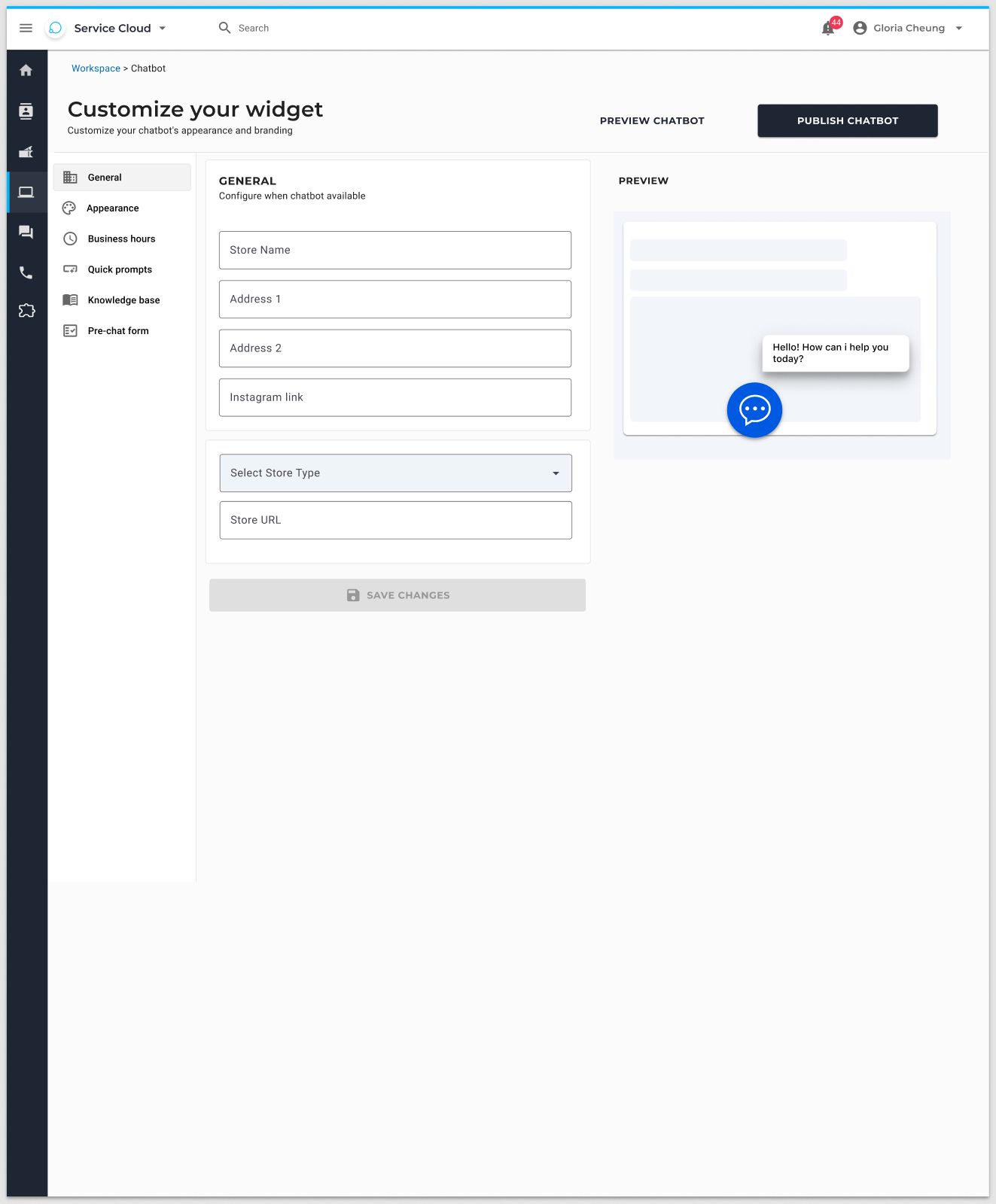

General setup with chatbot name and description — **General** Chatbot name and description, with live preview.

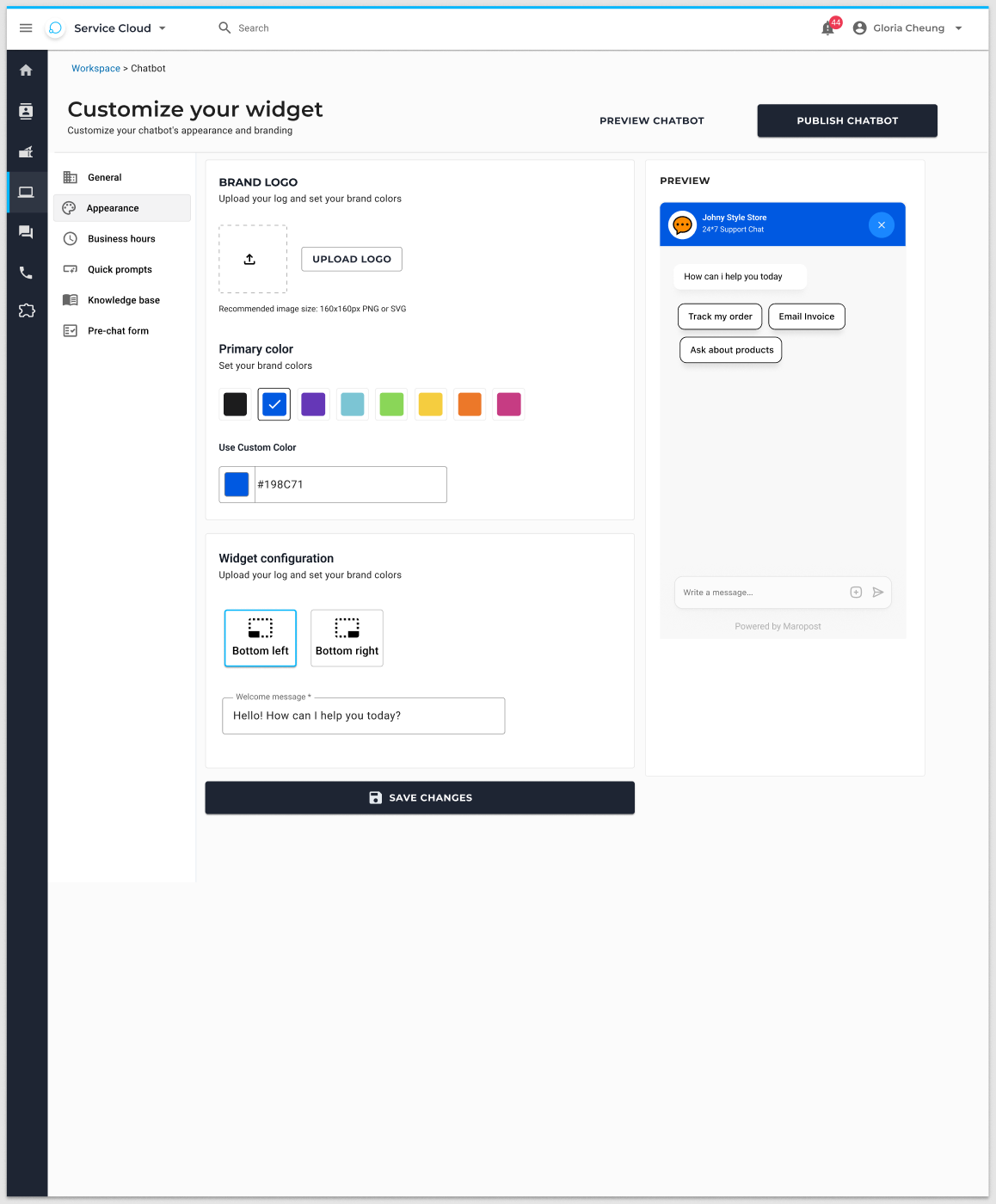

Appearance Logo, primary colour, live widget.

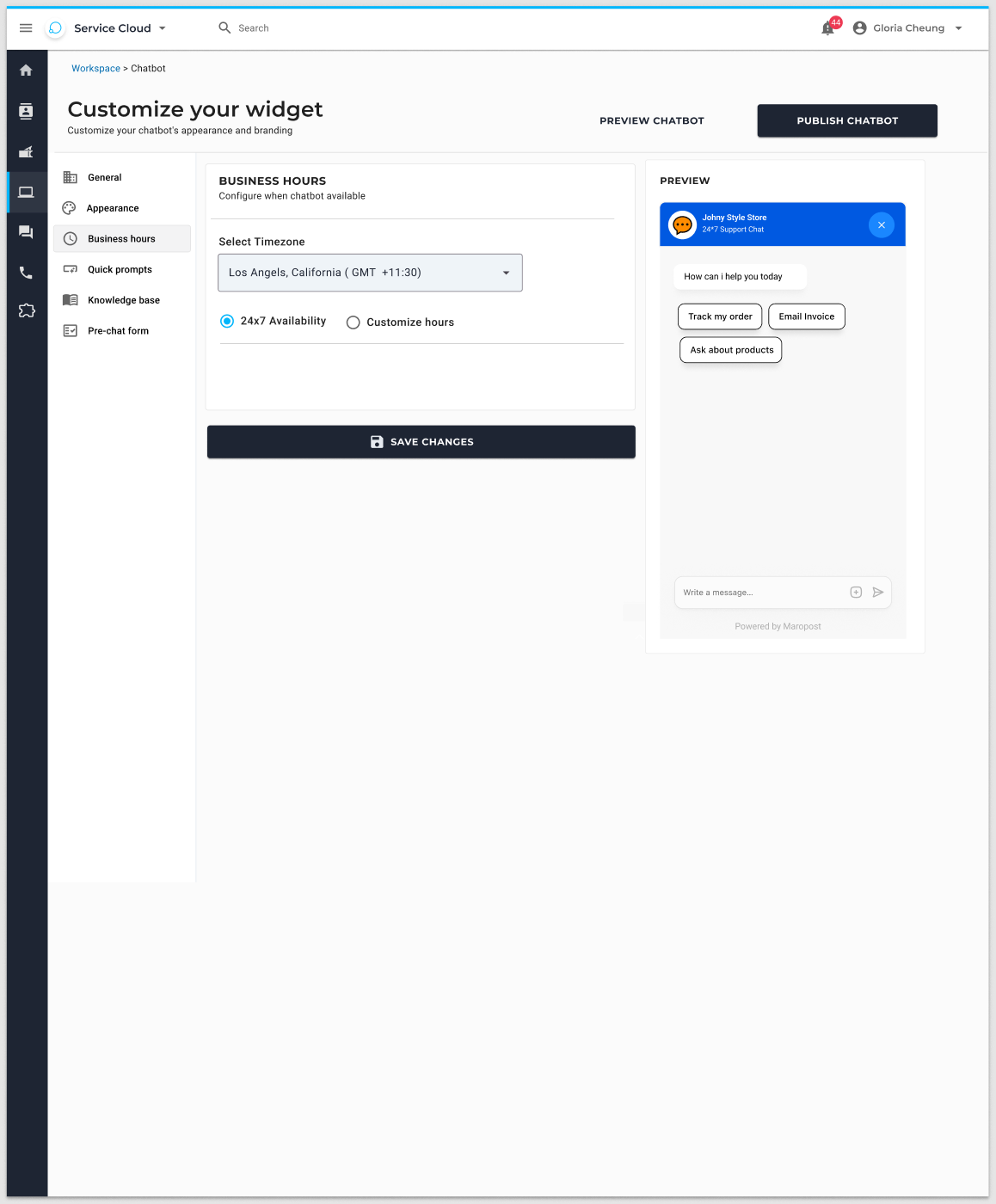

Business hours 24x7 or custom per day — **Business hours** 24×7 or per-day from/to times.

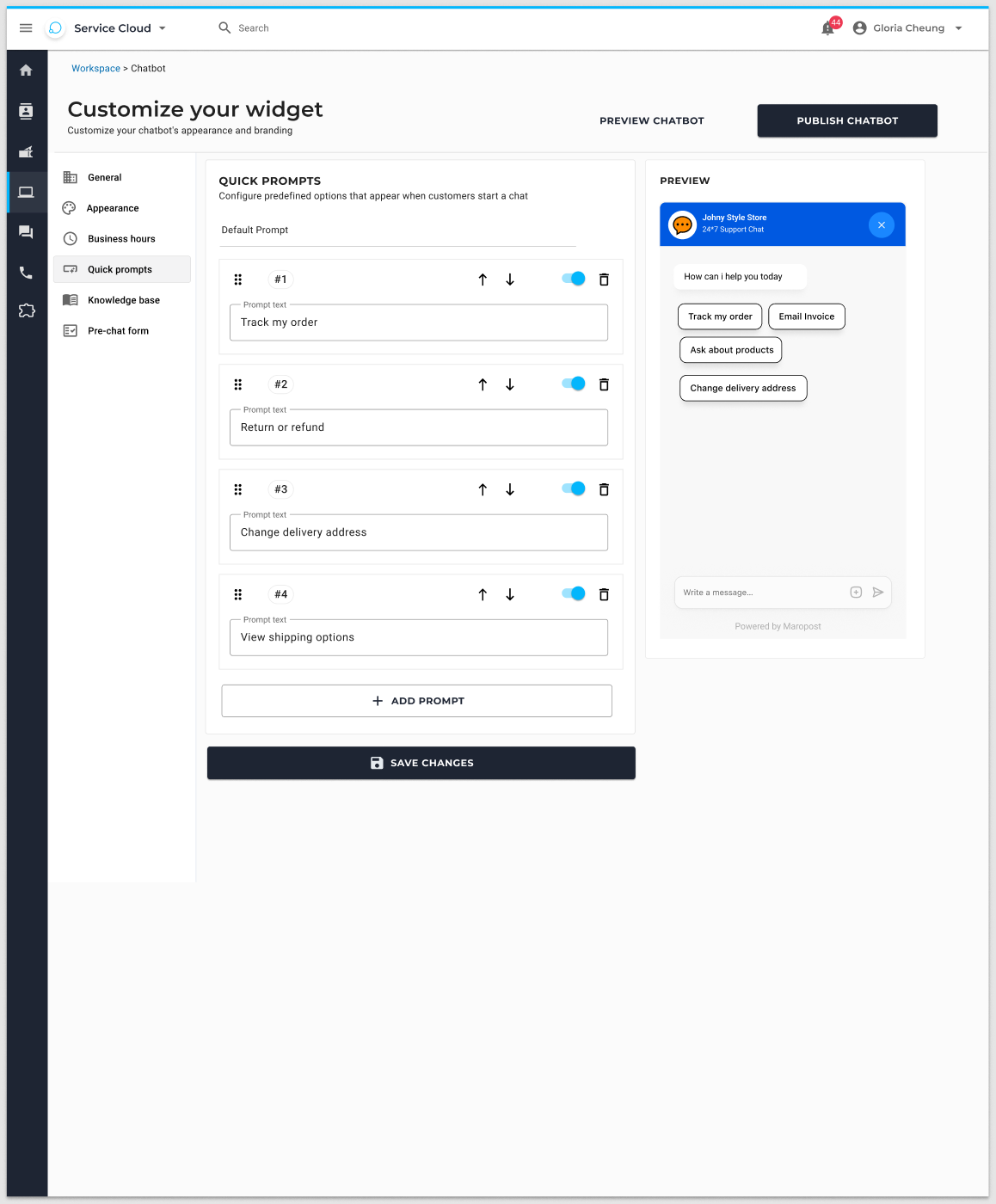

Quick Prompts for suggested chat questions — **Quick prompts** Default questions shoppers tap to start.

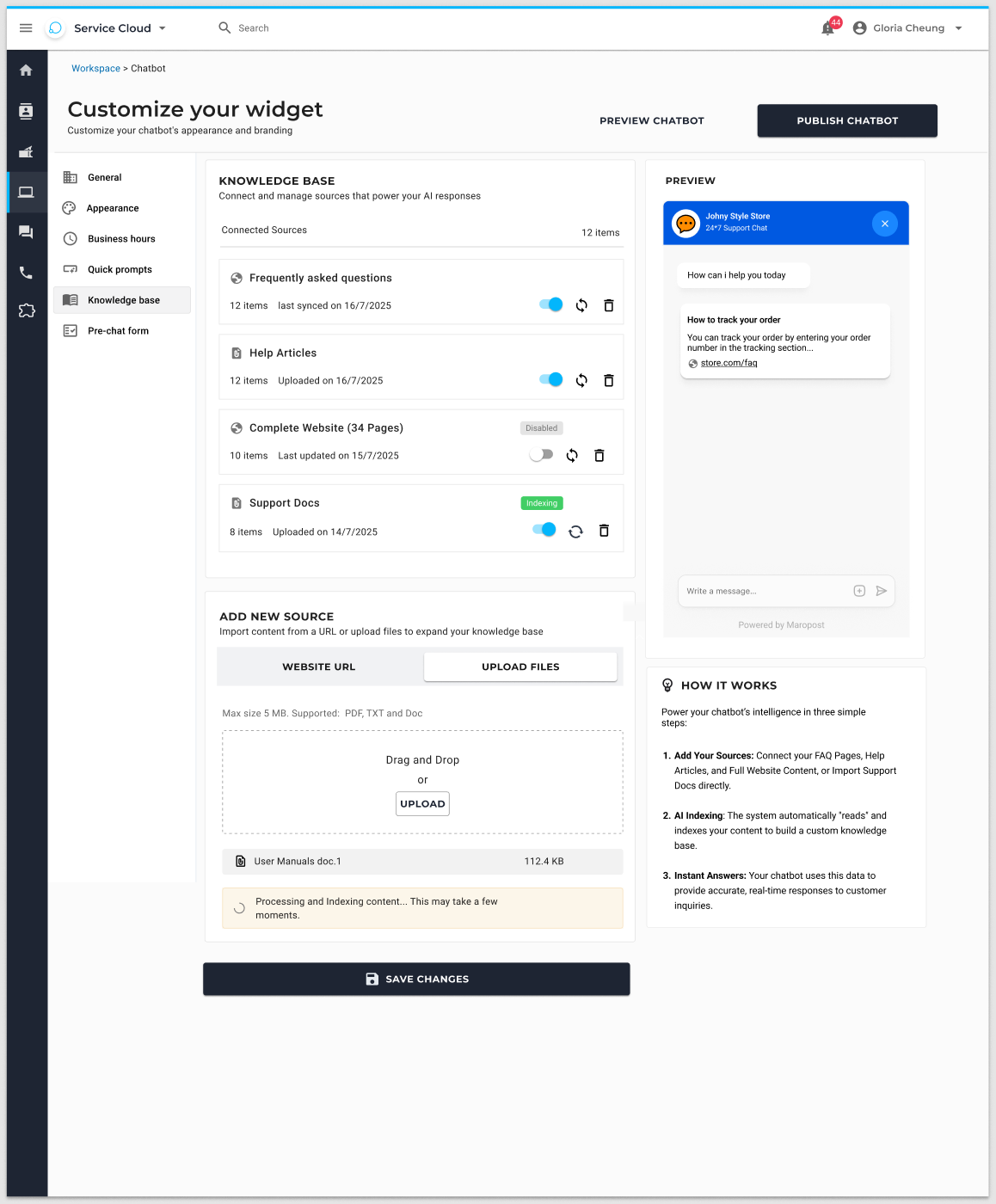

Knowledge base URL and file upload — **Knowledge base** URL or PDF / TXT / Doc upload.

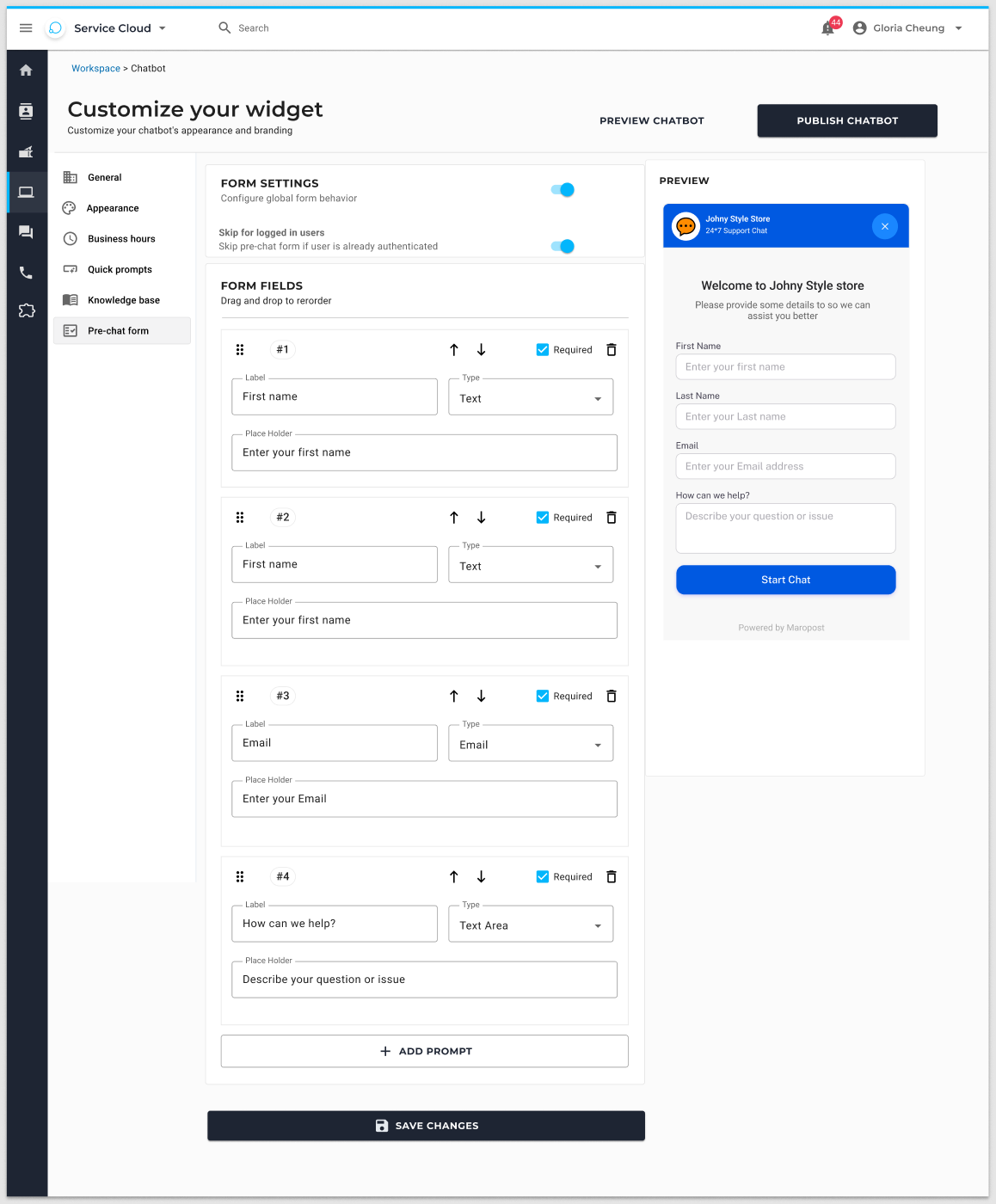

Form settings for email name and phone capture — **Form settings** Capture email, name, phone.

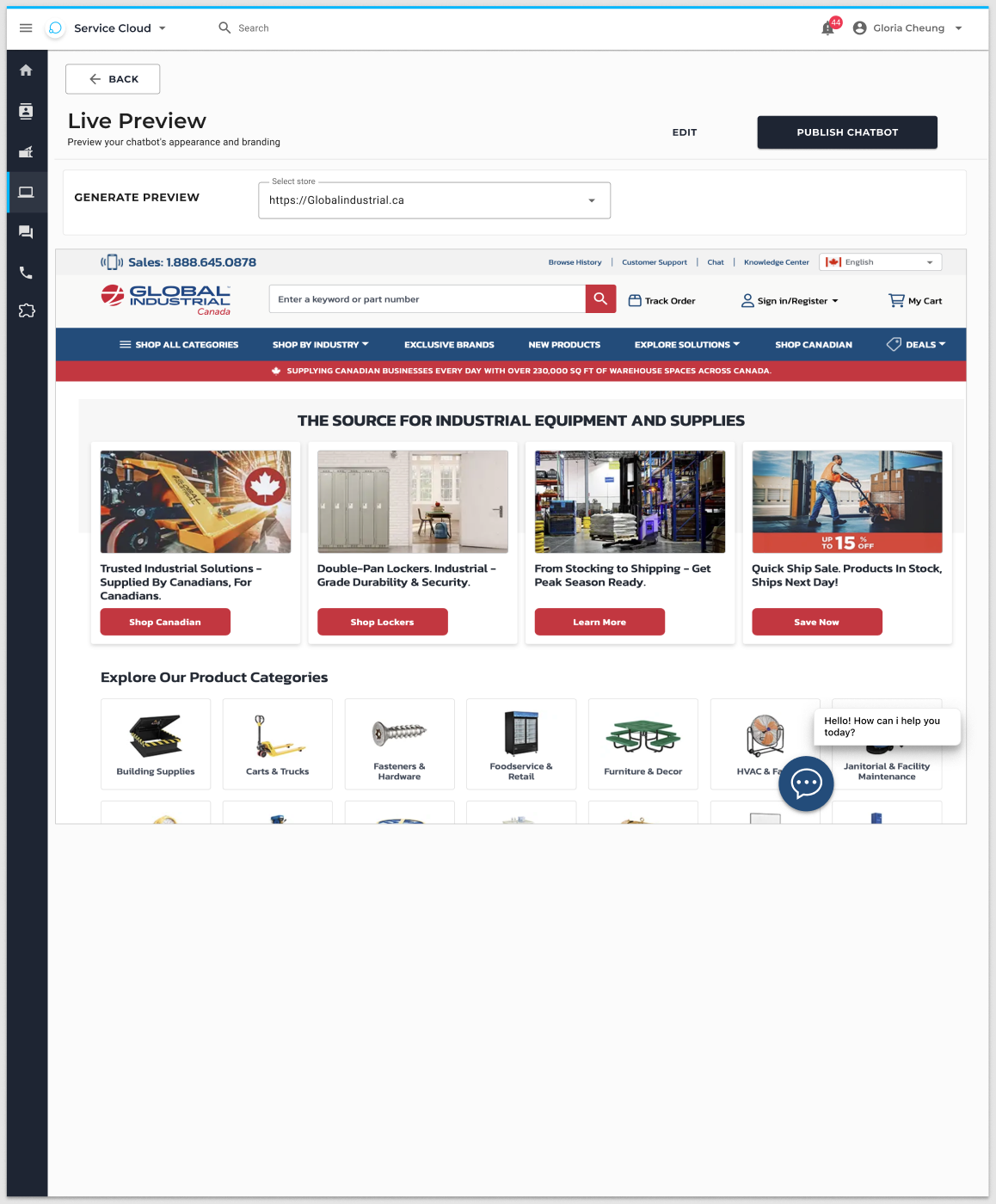

Live preview with Generate Preview Edit and Publish — **Live preview** Generate, edit, or publish.

Two feedback jobs. Two controls.

Early drafts mixed thumbs and stars on the same moment. That creates noisy data: a bad answer and a bad session are not the same thing. The final interaction model separates these signals.

On the message

Thumbs up / thumbs down

Shown on bot replies that can be judged – not welcome, login, ticket-created, or order-identification prompts. Thumbs down opens a reason list (Didn’t solve my issue, Inaccurate information, Confusing response, Didn’t understand my issue, Other) so the team knows why the answer failed.

On the conversation

Star rating at close

When the visitor ends the chat – “How was your chat with Sam?” – they rate the whole session from 1–5, or skip. Stars live on the Conversations list. Thumbs live on each reply and in the Chatbot Feedback table. Operators can scan quality, then drill into the exact message that went wrong.

Live widget

Built to the feedback design specification: header, bubbles, suggestion chips, thumbs, reason chips, Other + submit, and session CSAT on close. Try an order question, then thumbs-down a reply and close the chat.

johny-style.store

Order #N1237

Dispatched 18 Jun · In transit

Need to change the delivery address, check a return, or ask when it arrives? The chatbot on the right is the same widget designed for the merchant site – not a separate admin tool.

Use a suggested question, rate a bot reply with thumbs, then hit the × to leave a star rating for the session.

Storefront states, designed in Figma

The Collect Feedback frames cover the customer path from a judged reply through reason capture and session rating. These are the source of truth the live widget follows.

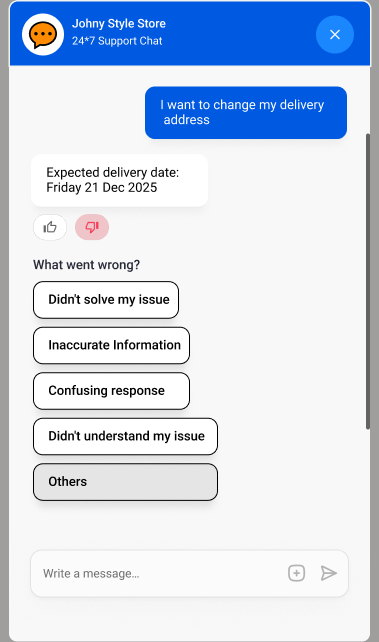

Chat widget with thumbs down and reason chips — **Message feedback** Thumbs on the bot reply. Down opens “What went wrong?” with selectable reasons.

Session close asking how the chat was — **Session close** Closing the widget asks for a star rating. Skip is always available – never trap the visitor.

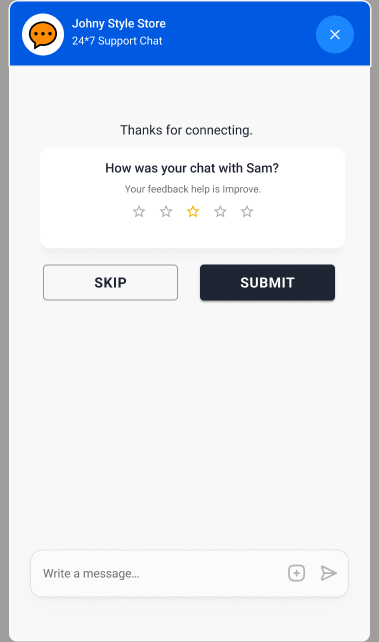

Three-star rating selected on the CSAT card — **CSAT submitted** Stars are the conversation score. They appear on the admin Conversations list, not on every bubble.

Guest order lookup, without leaking PII

A guest can ask where an order is. I designed the lookup so it does not share order details until the visitor logs in or verifies with a one-time email code. These three frames are the overview: the gate, the code, then the order answer.

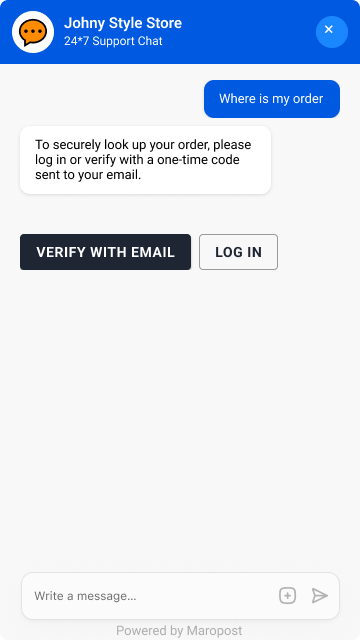

Chat widget asking the visitor to log in or verify with a one-time email code before order lookup — **Auth required** Order lookup asks the visitor to log in or verify with a one-time email code.

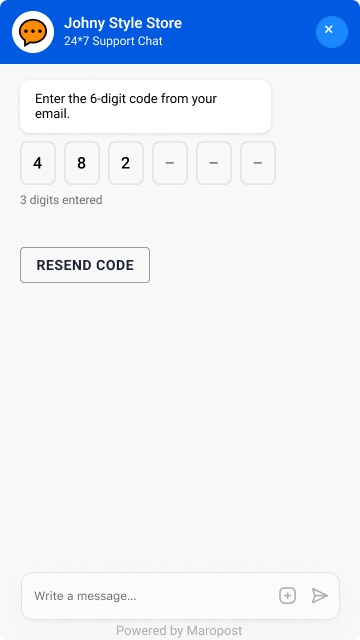

Six-box one-time code input with three digits entered — **Enter OTP** Six boxes. Progress shows how many digits are in.

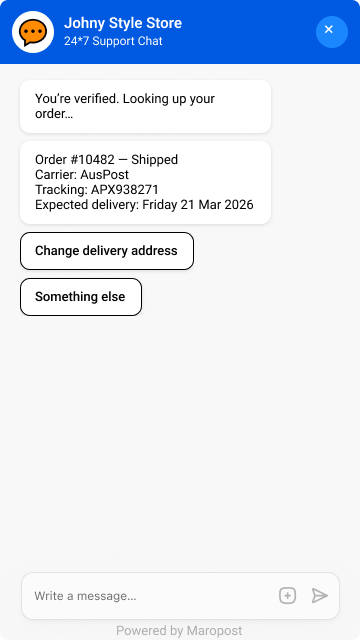

Verified chat showing order 10482 shipped with AusPost tracking and next-action chips — **Verified** Order 10482. Shipped, AusPost, tracking, expected delivery. Next actions without asking again.

The loop closes in Service Cloud

A storefront widget without an operator view is a black box. Conversations is the transcript: star rating on the session, thumbs on bot replies, and Create Ticket when the bot can’t finish the job.

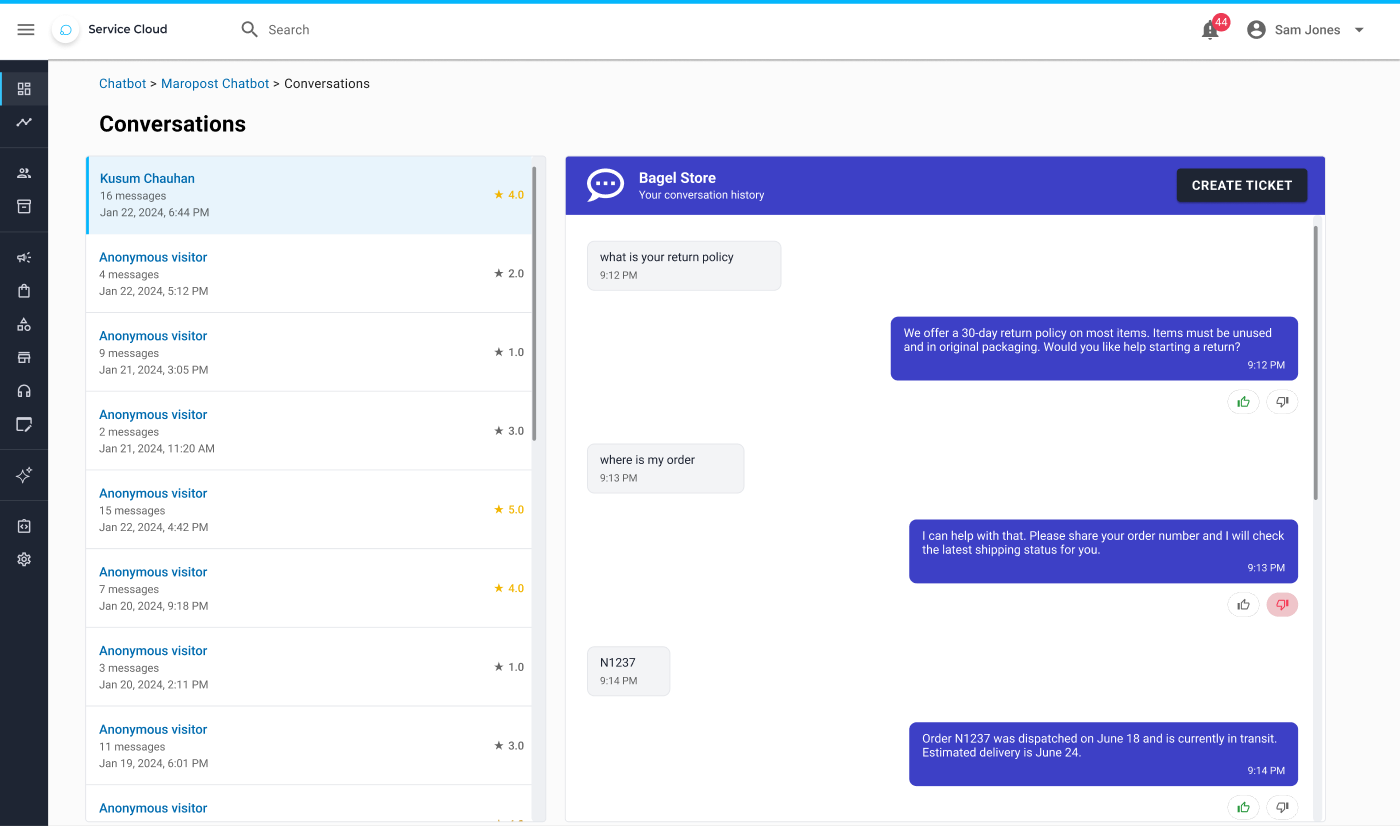

Service Cloud Conversations list with star ratings and transcript — **Conversations** – List + transcript. Star rating at conversation level. Thumbs on bot replies in the thread. Create Ticket when the bot can’t finish the job.

Design to production

The work covered the full journey: understanding the Figma and user flow, defining behaviour, specifying the interface and service integrations, documenting edge cases, and preparing the product for implementation and ongoing improvement.

Design

Review Figma, map merchant setup and the conversation, specify every state – loading, empty, error, thumbs, CSAT, skip.

Interface

Responsive widget: messages, chips, input, buttons, focus order, and touch targets that work on mobile.

Integrate

Conversation logic, AI/backend, order and policy APIs, persistence for history and feedback.

Ship & learn

Test edges, harden security and reliability, deploy, then improve from thumbs, stars, and usage.

What the product had to cover

Merchant setup: create, name, appearance, hours, prompts, knowledge, forms, publish
Responsive implementation specifications based on the Figma screens
Messages, input, buttons, loading, errors, and interactions
Conversation flow and chatbot logic
AI / backend services and required APIs or data sources
Conversation history, suggested questions, and feedback
Desktop and mobile, including accessibility basics
Edge cases, performance, security, and reliability
Production deployment, monitoring, and ongoing improvement

States that had to be real, not implied

Merchant setup Create → name → brand → hours → prompts → knowledge base → forms → preview → publish.

Suggested questions Recognition over recall – offer the three most likely intents before asking people to type.

Loading Typing indicator while the model or order API responds. Never a frozen input.

Thumbs + reasons Diagnose the answer. “Other” reveals a short free-text field, then Submit.

Session CSAT Rate the chat on close. Skip is equal to Submit in hierarchy – leaving is allowed.

History Operators open the same thread, see stars and thumbs, and can create a ticket.

Guest order lookup Log in or a one-time email code before any order details. Wrong codes count down. Three fails lock the lookup.

Auth declined If they skip verify, no PII. Offer verify, log in, or an agent.

Errors If the bot or an API fails, say so in plain language and keep the composer available.

What I would look for after launch

The Figma file is the contract. The product is the loop: thumbs-down reasons feeding answer quality, conversation stars feeding overall CSAT, and Create Ticket catching the cases the bot should not fake. From there the work is monitoring, not more chrome – which replies fail, which intents need better data, and where mobile still drops the composer.
